Pro AutoCAD Tools are a series of add-in utilities for Autodesk AutoCAD. The tools extend the capabilities of AutoCAD in key areas. They are easy to use and make working in AutoCAD more intuitive.
AUTOCAD Toolkit includes Nine sets of tools
What is pro AUTOCAD?
Pro AutoCAD is a package of nine tools designed to make your experience in Autodesk AutoCAD more productive and efficient. Enable yourself to better manage your project content. MG is an Autodesk Platinum Partner who specializes in Autodesk AEC solutions including AutoCAD solutions. With over 20 tools available, learn more about the tools below or use the View Playlist button to see them in action.
Selection This tool allows for selecting AutoCAD entities, elements on layers, and show Xdata.
Modify Use this tool to populate spreadsheets with AutoCAD properties and align objects to selected lines.
Geometry This tool allows you to fillet a 3D polyline, command similar to AutoCAD offset, and convert to a polyline.
Annotate Use this tool to define a base point location, label the slopes of a 2D or 3D polyline, create wipeout elements and a legend of blocks, create a legend of hatches, and create a legend of line types.
Text Summarize selected text objects and calculate the total length of all selected linear objects.
Layout Position your viewport by defining paper size, scale, and margins along with renaming sheets.
Output Export the insertion point of selected block entities or manually pick points on screen to export out into a standard ASCII XYZ file.
Copy to Clipboard Quickly copy file or folder path to clipboard.
Open Folder Opens MyDocuments, Desktop or containing drawing folder.
Want to see the tools in action?
Our team has curated a YouTube playlist designed to show you each tool in action in Autodesk AutoCAD. You can access the content by clicking the button below.
×
Access the video content by completing the form.
Most Popular
See the Tools from our Pro Autocad Toolset that our clients love the most
Legend Creation Tool
Create legends for blocks, linetypes, and hatches to save time and avoid rework. The Legend Creation Tool eliminates the tedious legend build times that are required in regular AutoCAD.

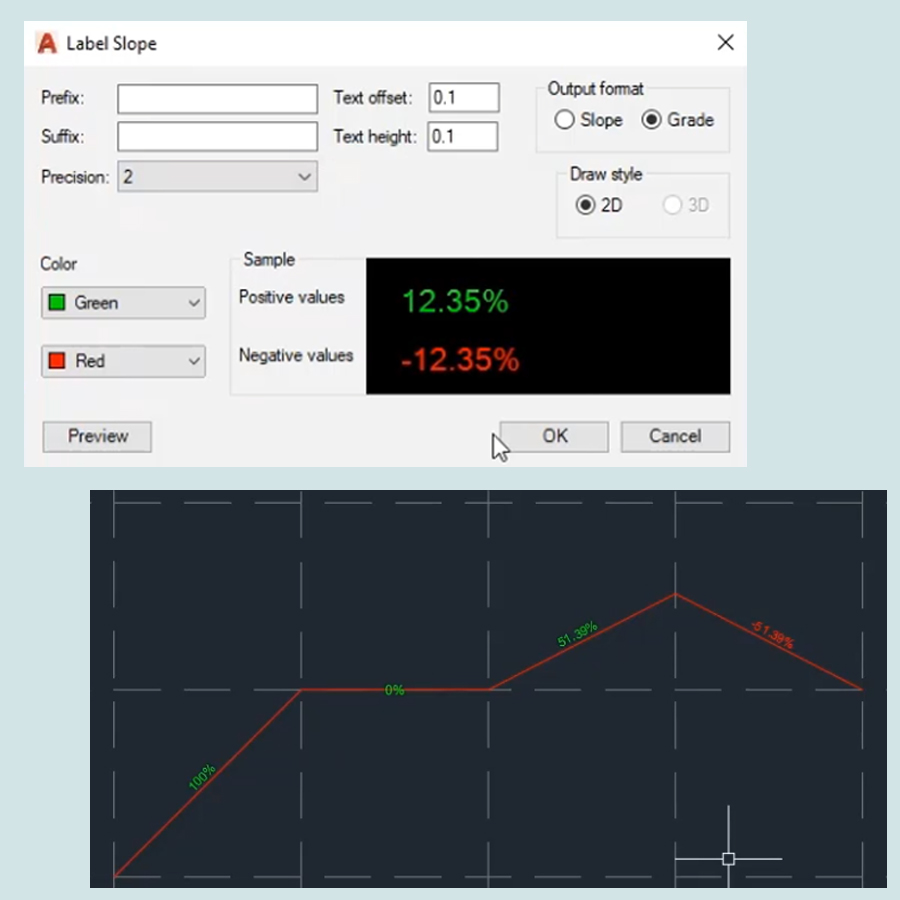

Label Slope Tool
Do slope or grade validation on 2D or 3D polylines without requiring the use of Civil 3D. With this tool, all label creation is done automatically. This saves crucial time when compared to using the distance tool and doing calculations to find values needed for your text or block label.
Total Length Tool
Find the total length of elements even if they are not fully joined like a polyline. The Total Length Tool helps eliminate extra steps of joining elements when you just need to find a quick total length.
